Upscale 6 1/2

$2,645.00$3,750.00

Now, includes free shipping!

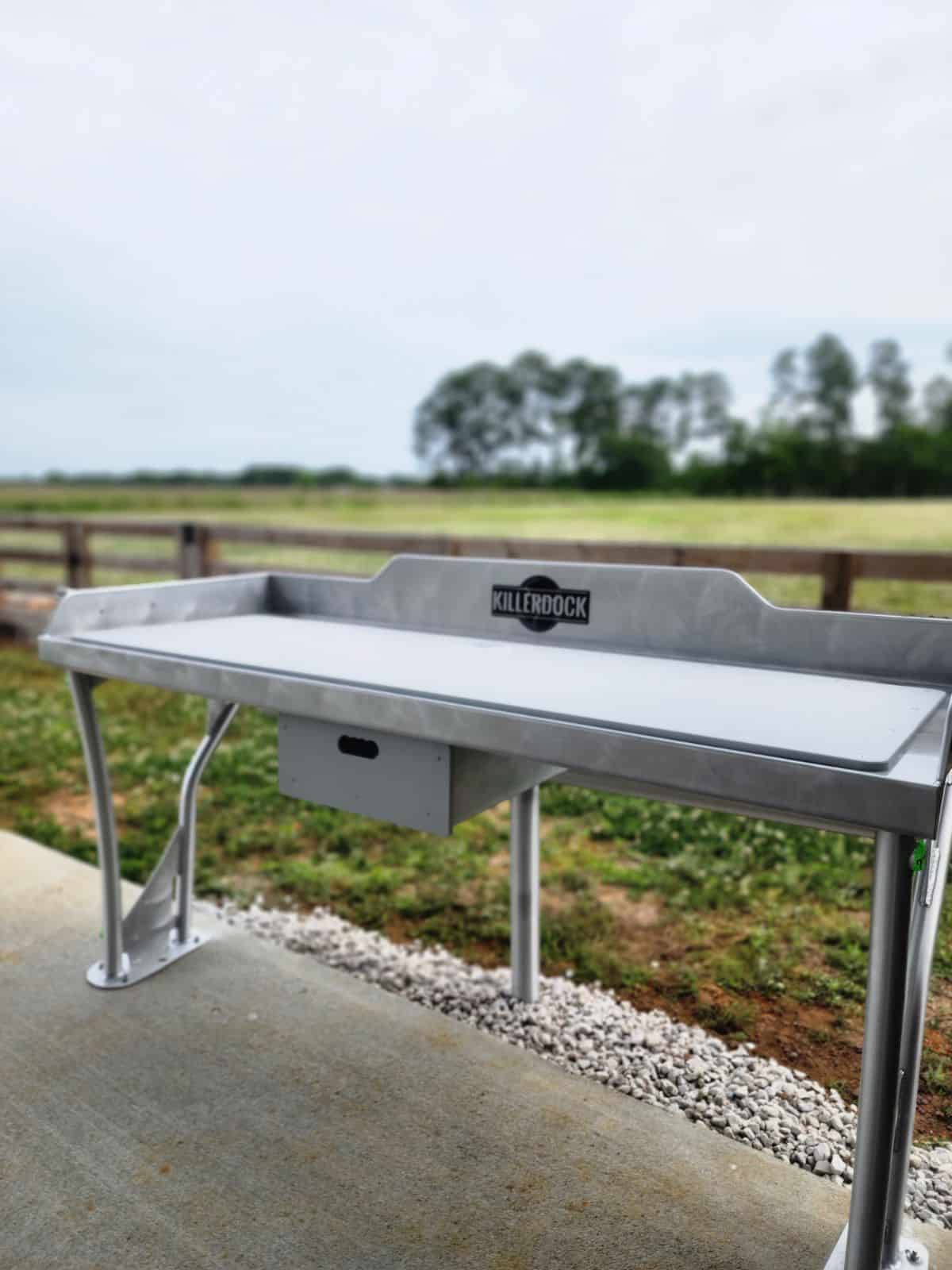

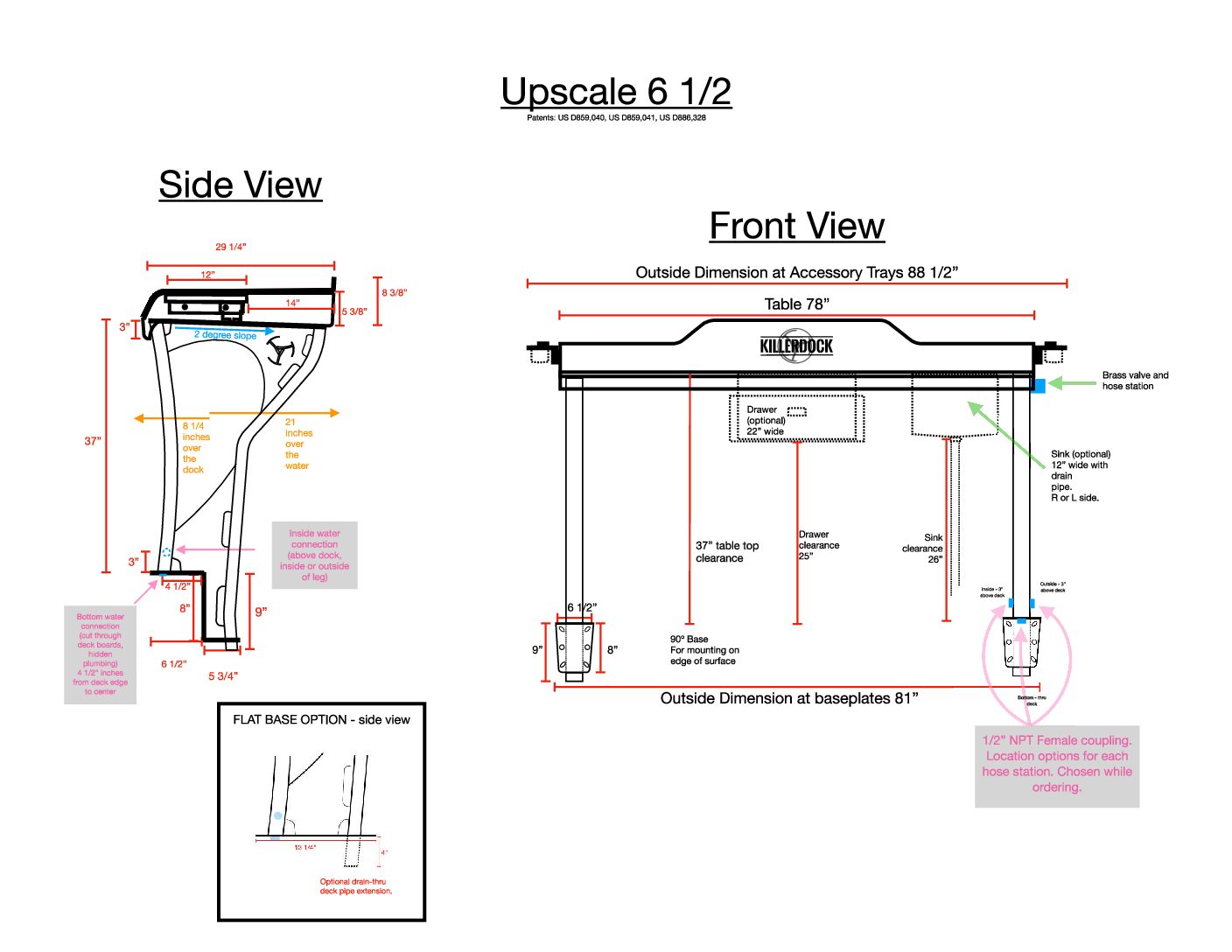

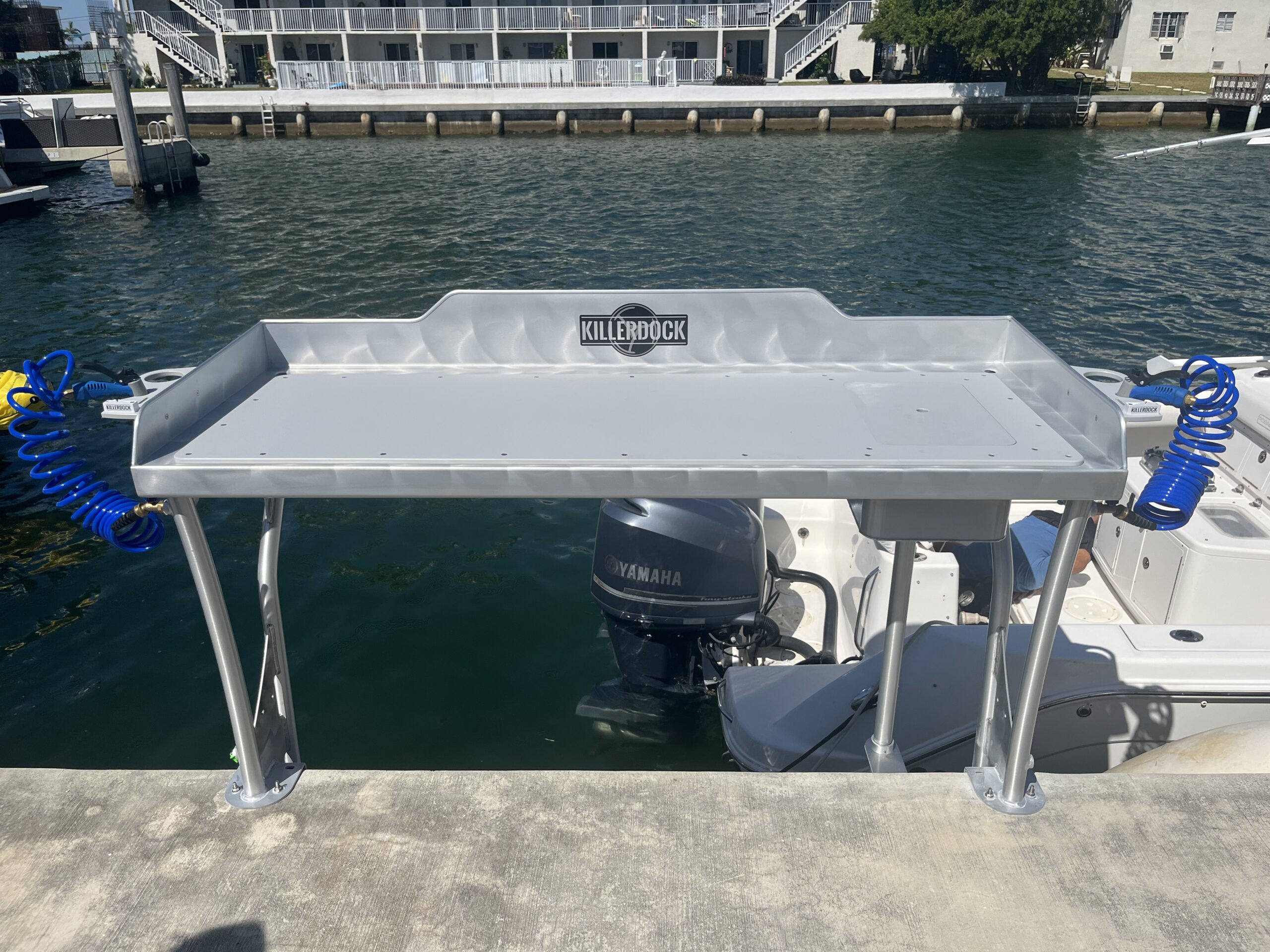

The Upscale 6 1/2 is built from Marine Grade Aluminum and protected by our industrial anti-corrosion clear coating. Table top 78”x29” (Accessory trays make 88” wide at 40” high). It has a hose station built into both table legs, so you can permanently install water to the bottom of the legs. You can choose below from 3 locations for the plumbing connection You’ll need 81” of horizontal clearance at the dock for baseplates.

*** Now comes standard with Gray King Starboard ***
*** Current production time from order to shipping is roughly 4 weeks. ***
*** Additional shipping charges may apply (gated access, remote destination (i.e. FL Keys), etc..

Additional Details:

Marine Grade Aluminum – will never rot or rust

A destination charge of $190 may apply to certain difficult to reach zip codes, e.g. FL Keys, Cape Hatteras etc.. if this fee applies to your order KillerDock will notify you at the time of shipping.

*** For INSTALLATION information, click ——> HERE.

*** Winterization Instructional Video, click ——> HERE.

For the plumbing, you are responsible for connecting your plumbing to the bottom of the table leg. The coupling for each hose station is 3/4” Female NPT. We suggest using a brass 3/4” male NPT connector to transition to your plumbing material. These are readily available at any large home improvement store.

All KillerDock products are now protected by a unique anti-corrosion clear coating that has been created to protect metal against highly adverse environments. Our industrial two component resin-based clear coating solution is considerably better than other solutions like powder coating and ceramic, which have their own deficiencies and limitations. It is not simply a clear coating, but chemically reinforced to make it stronger and more durable. You can trust that your KillerDock product will be protected for many years to come. It keeps the aluminum looking great, and makes cleaning/washing a breeze.

Included: two accessory trays (Right and left side). Each with a cup holder, hose hanger, knife sharpener, and knife slot.

King Starboard cutting surface and accessory trays – NOW COMES STANDARD WITH GRAY KING STARBOARD

For most applications, it installs to the edge of your dock with lag bolts. All of our hardware is 316 grade Stainless Steel, the highest grade on the market.

For the FLAT BASE option, if you also choose Below Dock draining, then the drain pipe will extend 4” through the flat base. You will need to use a 3” hole saw to drill through your top dock boards during install. If you choose Flat Base AND Slotted drain, then the base plate will be flat.

For the 90º BASE option, you will mount the table legs to the edge of your dock or seawall. This works for wood or concrete, and will include the appropriate mounting hardware. You will need a clean 90 degree edge, therefore you may need to trim down any overhanging or trim boards just where the legs connect.

The optional Under Mount Sink is a rounded rectangle sink that is 12” wide, 18” long, and 8” deep. It has the same clear coated Marine Grade Aluminum, and comes with a standard 1 ½” sink strainer, for you to add your own plumbing to be directed wherever you need it to drain.

The optional Under Mount Drawer has the same clear coated Marine Grade Aluminum and King Starboard as our fish cleaning stations. Outside dimensions of drawer 16”x”19.5”x5”

Base Type

SLAM_90_BASE

Slam 90 Base

Slam_Base_types

Slam Base Types

Slam_Double_-_Flat

Slam Double Flat

For the FLAT BASE option, if you also choose Below Dock draining, then the drain pipe will extend 4” through the flat base. You will need to use a 3” hole saw to drill through your top dock boards during install. If you choose Flat Base AND Slotted drain, then the base plate will be flat.

For the 90º BASE option, you will mount the table legs to the edge of your dock or seawall. This works for wood or concrete, and will include the appropriate mounting hardware. You will need a clean 90 degree edge, therefore you may need to trim down any overhanging or trim boards just where the legs connect.

PLUMBING CONNECTION – RIGHT LEG

Plumbing_location_diagram-pdf

PLUMBING CONNECTION – LEFT LEG

Plumbing_location_diagram-pdf

Drain

Traditional Slotted Table Drains

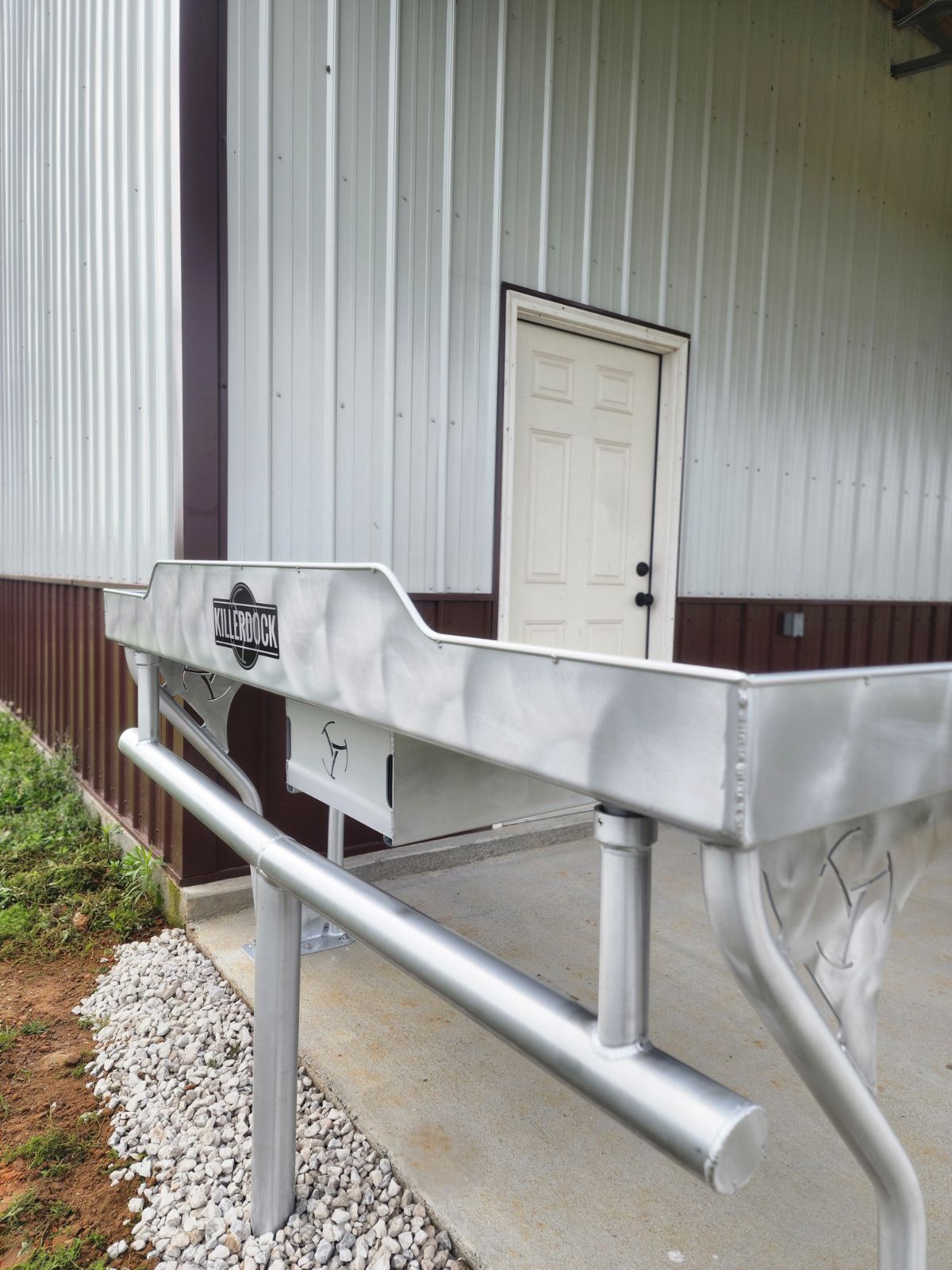

Aluminum Manifold Drain

Aluminum Pipe Drain

1 ½”- ready PVC

Traditional Slotted Table Drains – For maximum draining power our slotted tables are 1st in class. With multiple 1” x 6” slots lining the back of your table, it will drain faster than your bank account at Christmas.

Drain Inserts – Drain inserts with three different drain options. 1. Aluminum pipes, 2. Drain manifold, 3. 1 ½”- ready PVC connections.

Cushion/Canvas Color:

Fish Hanger

Overhead Fish Hanger

Every fisherman likes to capture the memories of a successful trip with a photo. The KillerDock Fish Hanger allows you to show off your catch hands free. Simply hang your fish through the spikes and smile.

Umbrella Holder

Cleaning fish shouldn’t be a hot job. Take the sun out of the equation with an umbrella holder capable of holding a 9’ diameter outdoor umbrella! With 2 anchoring points bolted to our sturdy overbuilt Upscale station your umbrella will be more than secure. They are side specific, so be sure to tell us which side of the station you would like to place your umbrella.

Two Umbrellas really are better than one. So if you can’t decide which side is best or need to provide your fish cleaning buddy with shade as well, just put one on each side and create a full solar eclipse over your station.

Drawer

One_Drawer

One Drawer

Two_Drawers

Two Drawers

The optional Under Mount Drawer has the same clear coated Marine Grade Aluminum and King Starboard as our fish cleaning stations. Outside dimensions of drawer 16”x”19.5”x5”.

Hose Station

Left_Hose_Station_2023-pdf

Left Side

Right_Hose_Station_2023-pdf

Right Side

For the plumbing, you are responsible for connecting your plumbing to the bottom of the table leg. The coupling for each hose station is 3/4” Female NPT. We suggest using a brass 3/4” male NPT connector to transition to your plumbing material. These are readily available at any large home improvement store.

Base Type

Upscale_90_Base_2023

90º

FLAT_BASE_2

FLAT

FLAT_BASE_DOWNSPOUT

FLAT BASE DOWNSPOUT

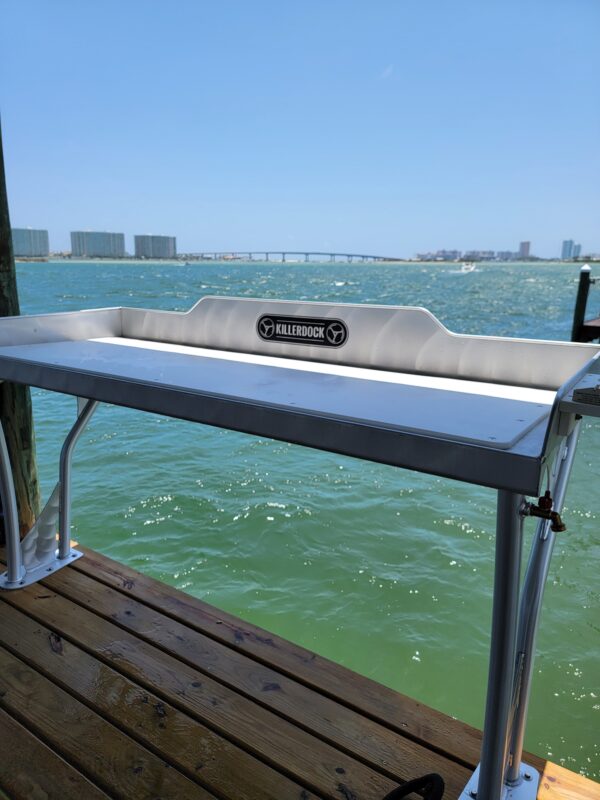

With the FLAT BASE option, if you choose Below Dock draining, then the drain pipe will extend 4” through the flat base. You will need to use a 3” hole saw to drill through your top dock boards during install. (Hidden after install.)

With with Flat Base AND Slotted drain combination, then the base plate will be completely flat.

With the 90º BASE option, you will mount the table legs to the edge of your dock or seawall. This works for wood or concrete, and will include the appropriate mounting hardware. You will need a clean 90 degree edge, therefore you may need to trim down any overhanging or trim boards just where the legs connect.

Drain

Patented Leg Drain

Traditional Slotted Table Drains

Aluminum Manifold Drain

Aluminum Pipe Drain

1 ½”- ready PVC

Patented Leg Drain – Our state of the art leg drains assures all drain fluids drain beneath the dock surface keeping you and your work space squeaky clean.

Traditional Slotted Table Drains – For maximum draining power our slotted tables are 1st in class. With multiple 1” x 6” slots lining the back of your table, it will drain faster than your bank account at Christmas.

Drain Inserts – Drain inserts with three different drain options. 1. Aluminum pipes, 2. Drain manifold, 3. 1 ½”- ready PVC connections.

Cushion/Canvas Color:

Sink

Up_5_1_2_sink_L

Left Side

Up_5_1_2_sink_R

Right Side

The optional Under Mount Sink is a rounded rectangle sink that is 12” wide, 18” long, and 8” deep. It has the same clear coated Marine Grade Aluminum, and comes with a standard 1 ½” sink strainer, for you to add your own plumbing to be directed wherever you need it to drain.
