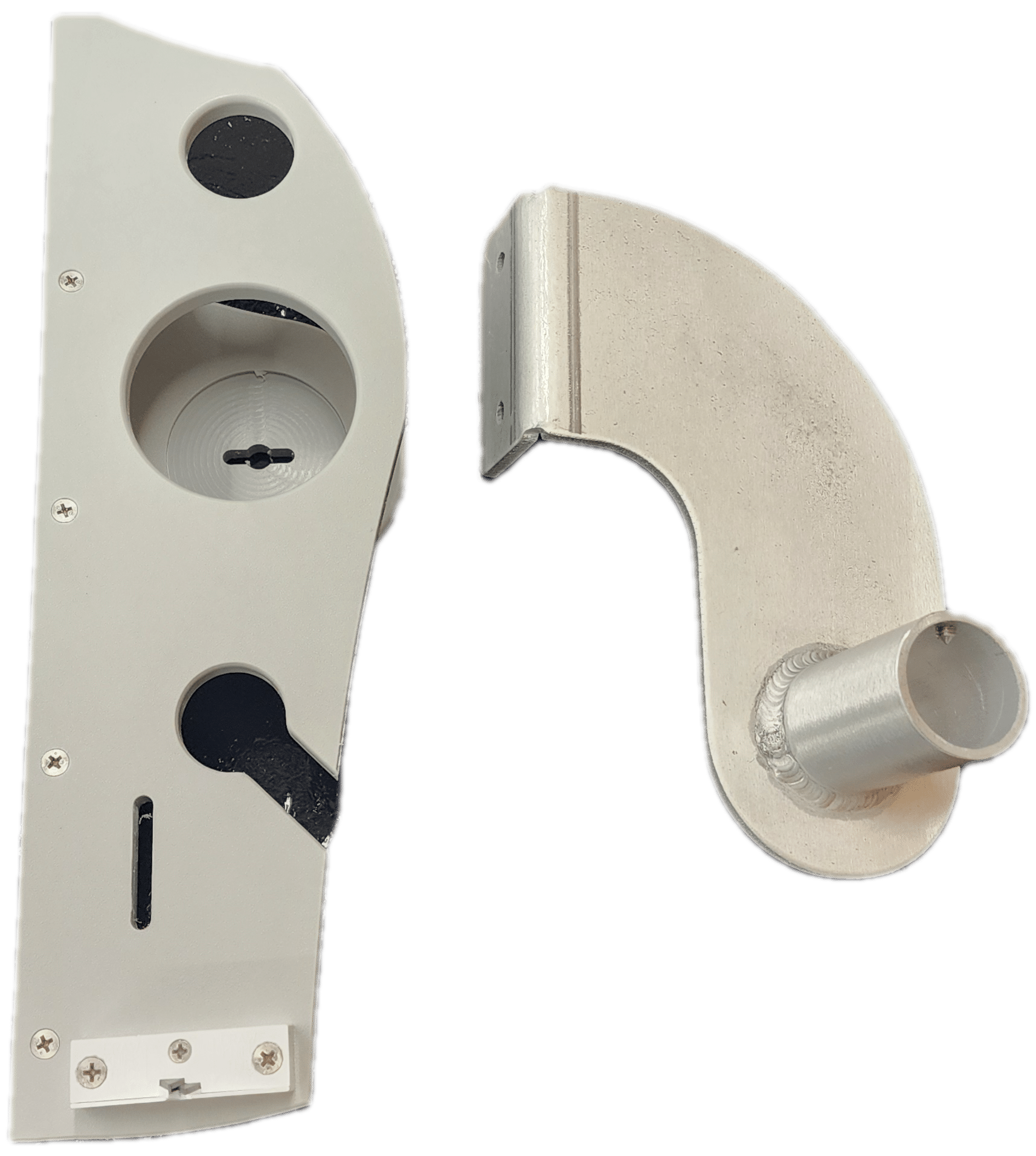

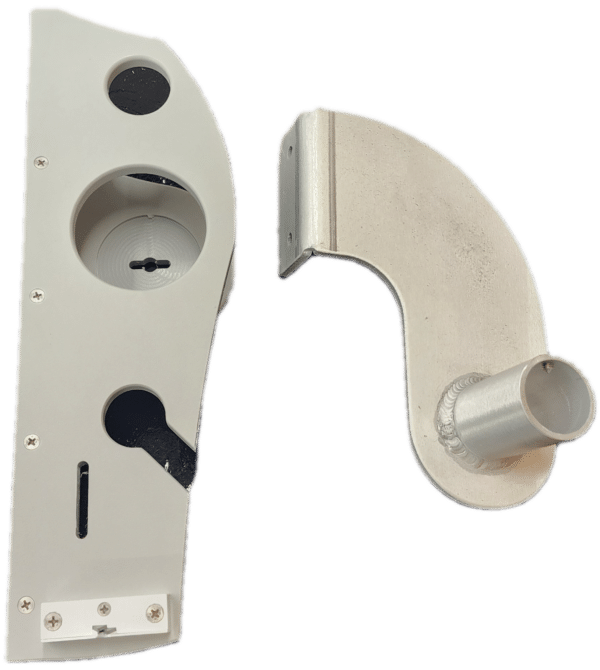

Tired of baking in the Summer Sun while working at your cleaning station? Our umbrella holders have got you covered! The KillerDock Umbrella holder is easily mounted to any existing KillerDock Upscale cleaning station and is strong enough to handle up to a 9′ diameter umbrella.
Select options
This product has multiple variants. The options may be chosen on the product page
Base Type
Slam 90 Base
Slam Base Types
Slam Double Flat
For the FLAT BASE option, if you also choose Below Dock draining, then the drain pipe will extend 4” through the flat base. You will need to use a 3” hole saw to drill through your top dock boards during install. If you choose Flat Base AND Slotted drain, then the base plate will be flat.
For the 90º BASE option, you will mount the table legs to the edge of your dock or seawall. This works for wood or concrete, and will include the appropriate mounting hardware. You will need a clean 90 degree edge, therefore you may need to trim down any overhanging or trim boards just where the legs connect.
PLUMBING CONNECTION – RIGHT LEG
PLUMBING CONNECTION – LEFT LEG
Drain
Traditional Slotted Table Drains
Aluminum Manifold Drain
Aluminum Pipe Drain
1 ½”- ready PVC
Traditional Slotted Table Drains – For maximum draining power our slotted tables are 1st in class. With multiple 1” x 6” slots lining the back of your table, it will drain faster than your bank account at Christmas.
Drain Inserts – Drain inserts with three different drain options. 1. Aluminum pipes, 2. Drain manifold, 3. 1 ½”- ready PVC connections.
Cushion/Canvas Color:
Fish Hanger
Overhead Fish Hanger
Every fisherman likes to capture the memories of a successful trip with a photo. The KillerDock Fish Hanger allows you to show off your catch hands free. Simply hang your fish through the spikes and smile.
Umbrella Holder

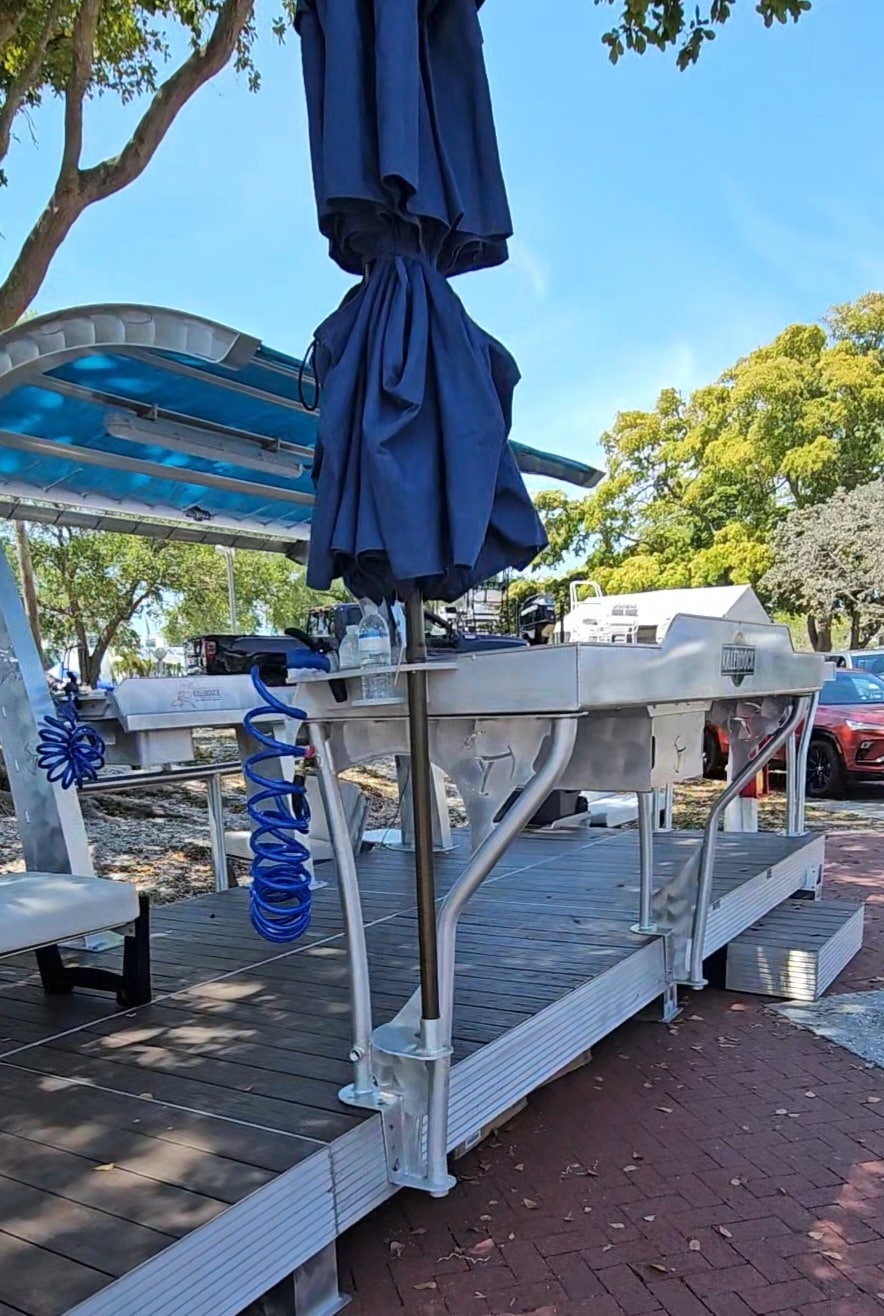

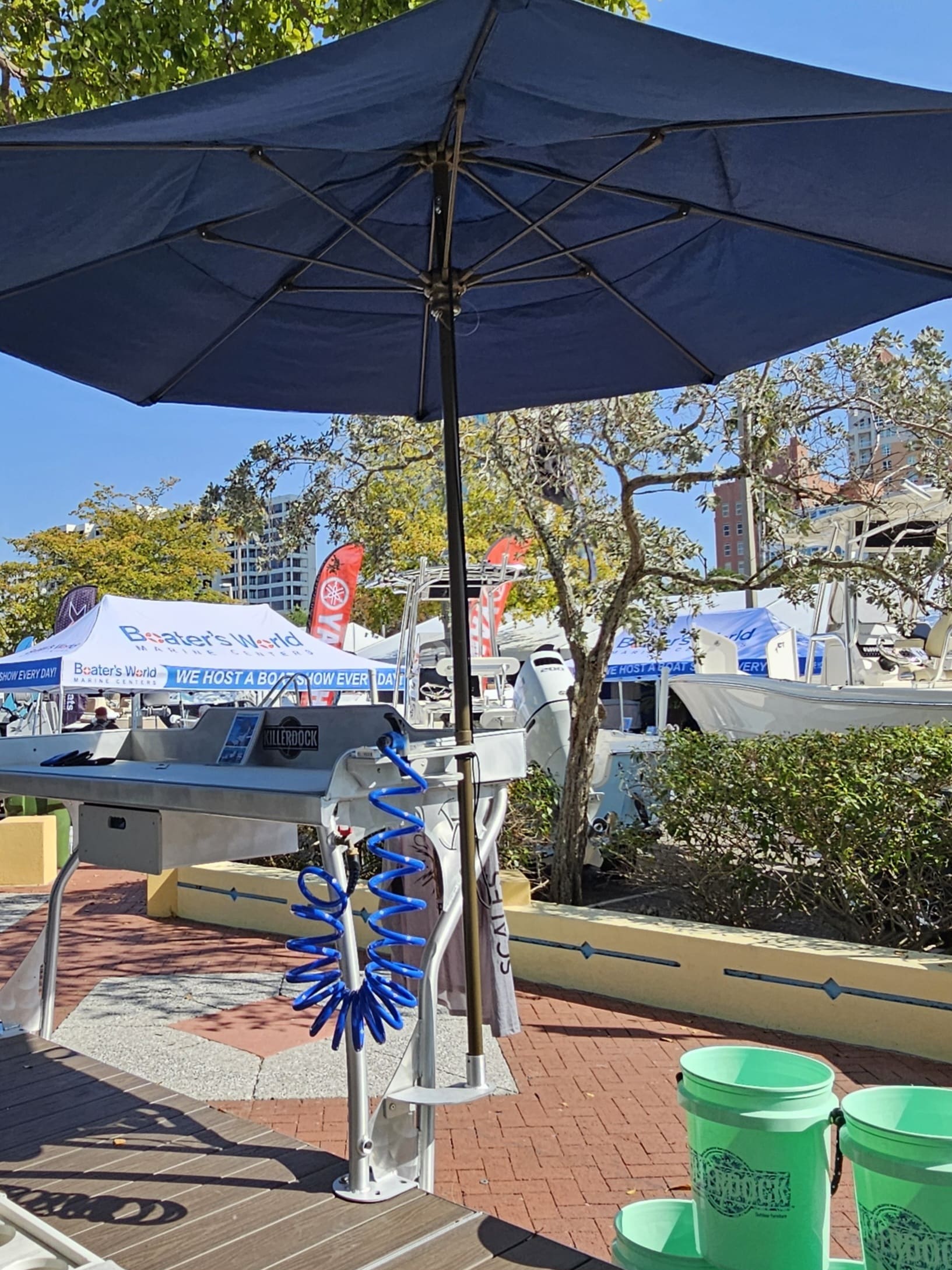

Cleaning fish shouldn’t be a hot job. Take the sun out of the equation with an umbrella holder capable of holding a 9’ diameter outdoor umbrella! With 2 anchoring points bolted to our sturdy overbuilt Upscale station your umbrella will be more than secure. They are side specific, so be sure to tell us which side of the station you would like to place your umbrella.
Two Umbrellas really are better than one. So if you can’t decide which side is best or need to provide your fish cleaning buddy with shade as well, just put one on each side and create a full solar eclipse over your station.
Drawer
One Drawer
Two Drawers
The optional Under Mount Drawer has the same clear coated Marine Grade Aluminum and King Starboard as our fish cleaning stations. Outside dimensions of drawer 16”x”19.5”x5”.
Hose Station
Left Side
Right Side
For the plumbing, you are responsible for connecting your plumbing to the bottom of the table leg. The coupling for each hose station is 3/4” Female NPT. We suggest using a brass 3/4” male NPT connector to transition to your plumbing material. These are readily available at any large home improvement store.
Base Type
90º
FLAT
FLAT BASE DOWNSPOUT
With the FLAT BASE option, if you choose Below Dock draining, then the drain pipe will extend 4” through the flat base. You will need to use a 3” hole saw to drill through your top dock boards during install. (Hidden after install.)
With with Flat Base AND Slotted drain combination, then the base plate will be completely flat.
With the 90º BASE option, you will mount the table legs to the edge of your dock or seawall. This works for wood or concrete, and will include the appropriate mounting hardware. You will need a clean 90 degree edge, therefore you may need to trim down any overhanging or trim boards just where the legs connect.
Drain
Patented Leg Drain
Traditional Slotted Table Drains
Aluminum Manifold Drain
Aluminum Pipe Drain
1 ½”- ready PVC
Patented Leg Drain – Our state of the art leg drains assures all drain fluids drain beneath the dock surface keeping you and your work space squeaky clean.
Traditional Slotted Table Drains – For maximum draining power our slotted tables are 1st in class. With multiple 1” x 6” slots lining the back of your table, it will drain faster than your bank account at Christmas.
Drain Inserts – Drain inserts with three different drain options. 1. Aluminum pipes, 2. Drain manifold, 3. 1 ½”- ready PVC connections.
Cushion/Canvas Color:
Sink
Left Side
Right Side
The optional Under Mount Sink is a rounded rectangle sink that is 12” wide, 18” long, and 8” deep. It has the same clear coated Marine Grade Aluminum, and comes with a standard 1 ½” sink strainer, for you to add your own plumbing to be directed wherever you need it to drain.
